RHINOTURN T-Holder with Pinpointed High Pressure Coolant

» Pinpointed high pressure coolant directly to the cutting edge
» High productivity due to increased cutting speed and feed
» Improved tool-life and chip control
» Strong clamping force and stable machining with T-holder type
» More efficient in machining of difficult-to-cut materials
» Recommended coolant pressure 70 bar. Max 140 bar

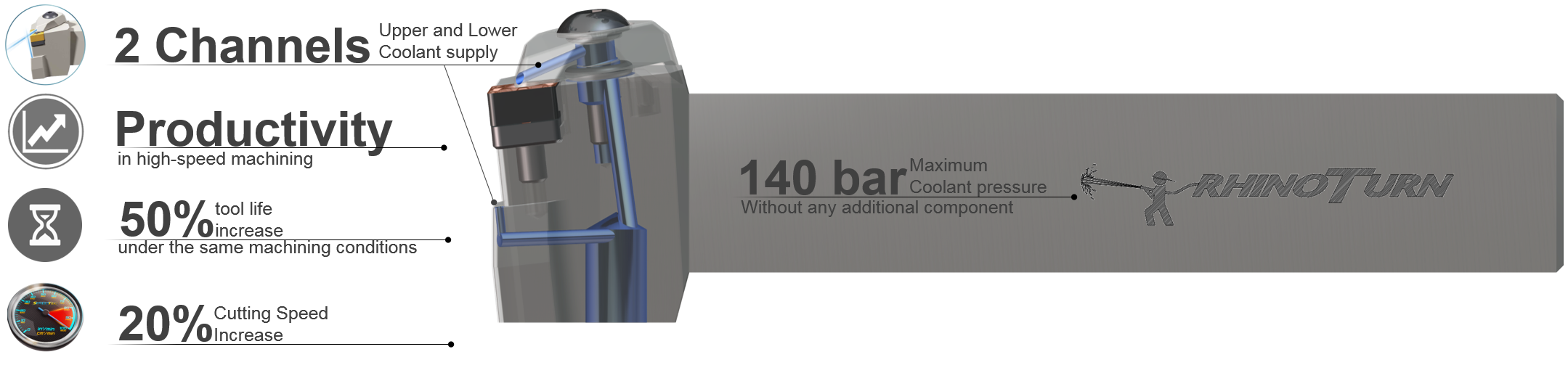

Bursting Accurate High-pressure Internal Coolant Supply​

SFEED-TEC COOL-BURST is a highly effective line for the machining of heat-resistant alloys such as Inconel, titanium and difficult-to-cut materials like stainless steel. The line’s internal pinpointed high-pressure coolant supplying system boosts productivity by efficiently shooting directly to the cutting edge of the rake face and flank face through both the upper and lower coolant channels. Besides the enriched and unique shooting feature, productivity is heightened due to the line’s optimal chip control and strong clamping force that stabilizes machining at greater speeds and feeds while also improving the life of the tool. Unlike the conventional lever type external coolant supply holders, the line’s coolant bursts with pinpoint accuracy up to 140 bar directly from the top clamp without any additional components.

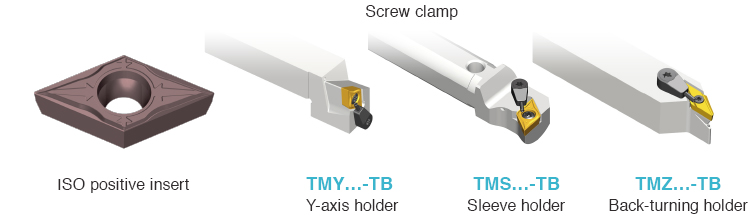

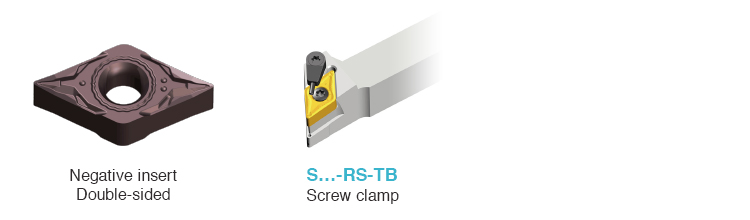

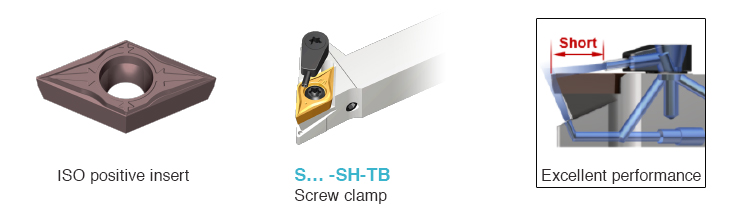

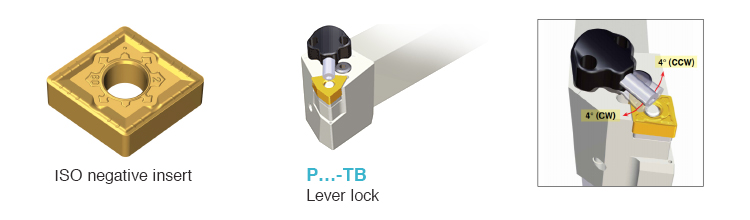

A Variety of High-pressure Coolant Type Tool-Holders



Tools with high pressure coolant



* -TB: COOL-BURST high pressure coolant holder
