H-DRILL (NHD, NHD-K)

High Performance Solid Carbide Drill

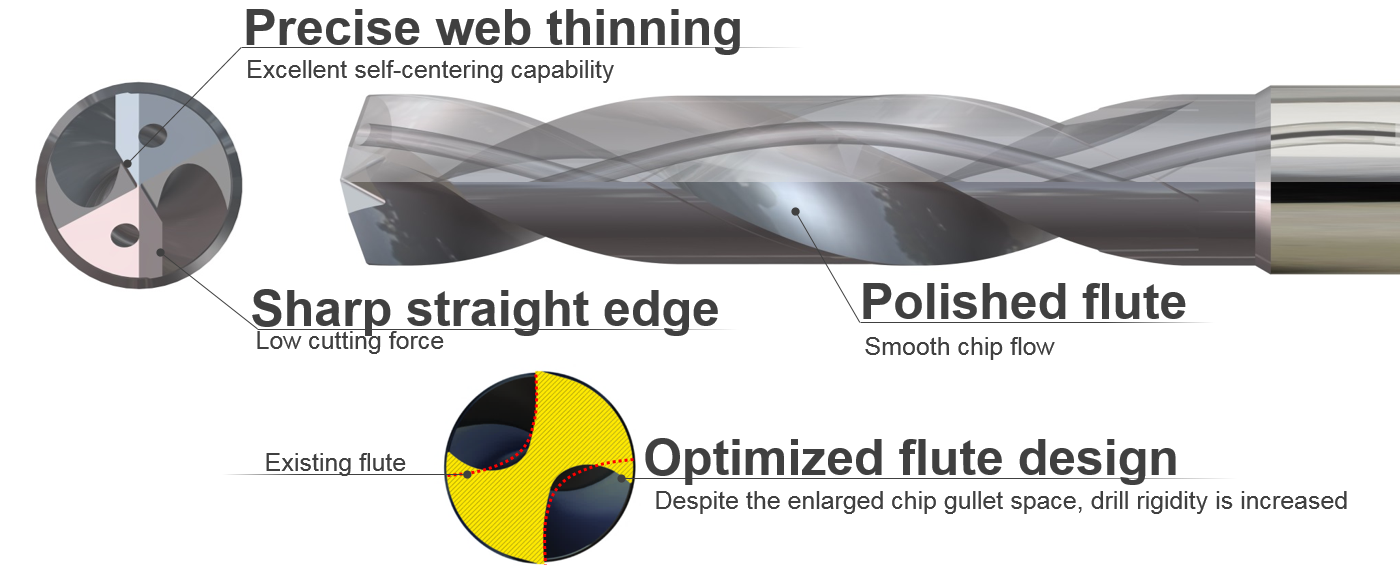

» Excellent chip flow and low cutting forces with optimized cutting edge design
» Highly rigid drill body and high accuracy hole
» Multi-angle cutting edge geometry (NHD-K)
   - Minimized chipping or damage due to uniform cutting load
   - Minimized burrs and excellent surface finish
» Longer tool life with TT9030 grade

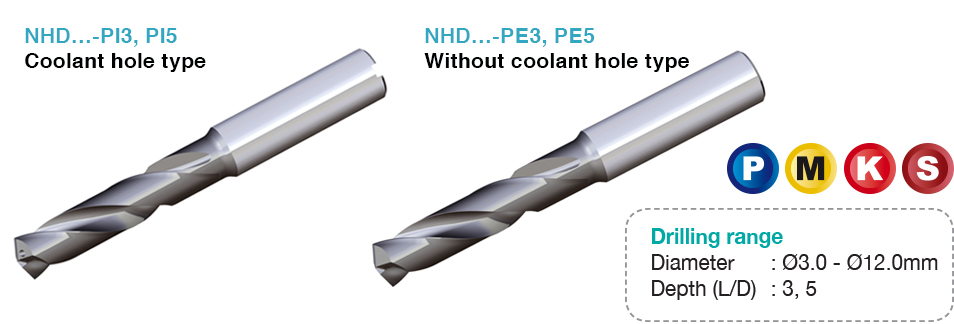

NHD - Improved Solid Carbide Drill

H-DRILL is designed for improved drilling stability because of the optimized cutting edges that generate low cutting force and excellent self-centering capability for higher accuracy holes. The drill’s wide chip gullet with polished flute enables smooth chip evacuation. Its multi-layered coating technology gives maximized toughness as well as increased wear resistance while prolonging tool life through high efficiency machining.

H-DRILL (Solid Carbide Drill)
