TM-REAM (ヘッド交換式リーマー)
Head changeable reamer for high speed reaming
» Quick change system: No set up time
» High speed & feed rate for maximum productivity
» High accuracy: Maximum run-out 3μm
» Highly economical: One shank for a wide range of diameters & cutting edges
» Internal coolant directed to the cutting edges: Prolonged tool life
Quick Interchangeable Multi-edged Reamer
The high-speed TM-REAM line consists of an interchangeable carbide reaming head with a unique quick-change mechanism that provides high productivity. The standard TM-REAM line covers reaming applications from 11.501-32.000mm H7 hole tolerance range. The reamer has been designed with internal coolant holes for efficient head lubrication and long tool life.

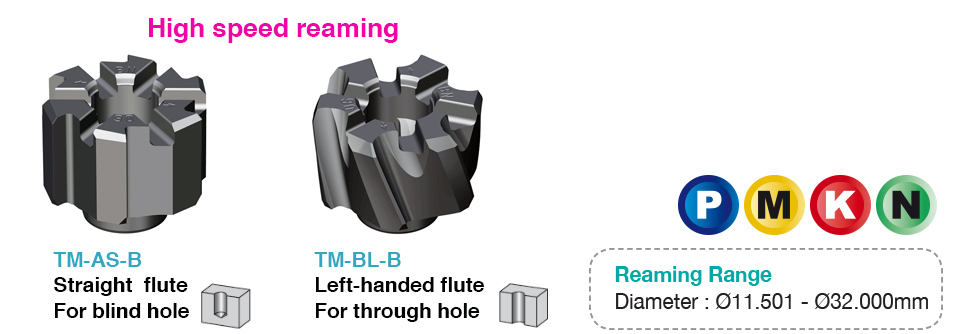

ヘッド
* H7 公差

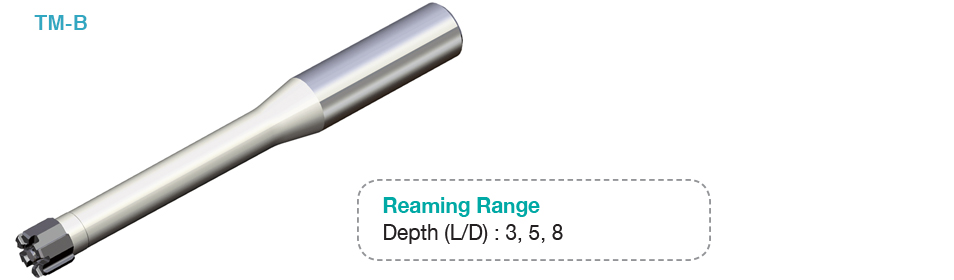

シャンク
