» Unique and powerful clamping design that minimizes insert rotation
» Excellent surface finish and precise machining dimensions, suitable for finishing
» Stable tool life and excellent machining performance
» Compatible with standard ISO holders
V-Type Insert and Holders with Rigid Clamping

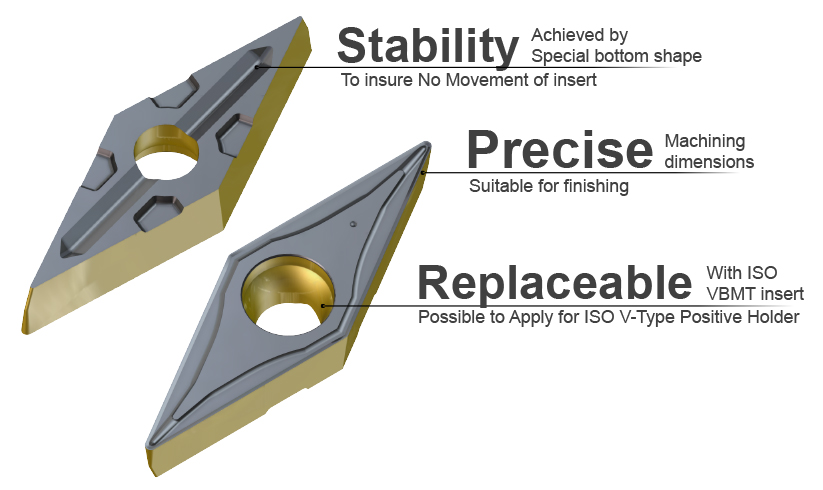

The MULTI-L-TURN insert's narrow corner angles mean the V-type insert is capable of various profiling operations. However, the clearance angle between the pressed type insert and the pocket causes the insert to rotate during machining, resulting in dimensional displacement. To reduce dimensional displacement, TaeguTec has released an
all new VBMX V-type positive insert and dedicated holders that reduce dimensional displacement caused by the

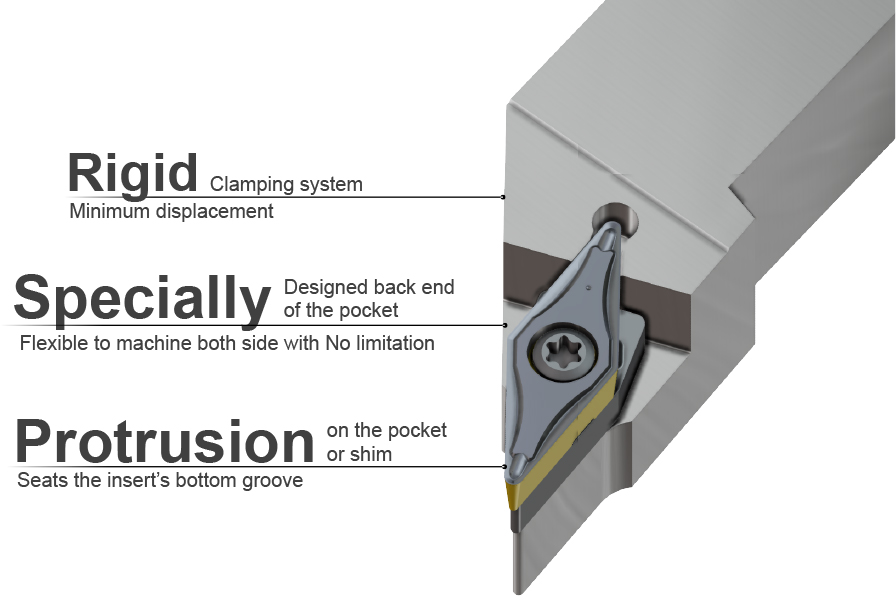

pressed type insert's rotation. The new VBMX insert and dedicated holders provide stable tool life, excellent machining performance, and precise machining dimensions based on a rigid clamping design. The insert's bottom face includes a groove that firmly seats it on a specially shaped shim, while the back end of the insert contacts to a specially designed pocket.
