CHASE-4-FINISH (4WHU)

縦使いワイパーチップ採用、超仕上用ミーリング工具

» ワイパー仕様チップを採用し、超仕上加工に対応

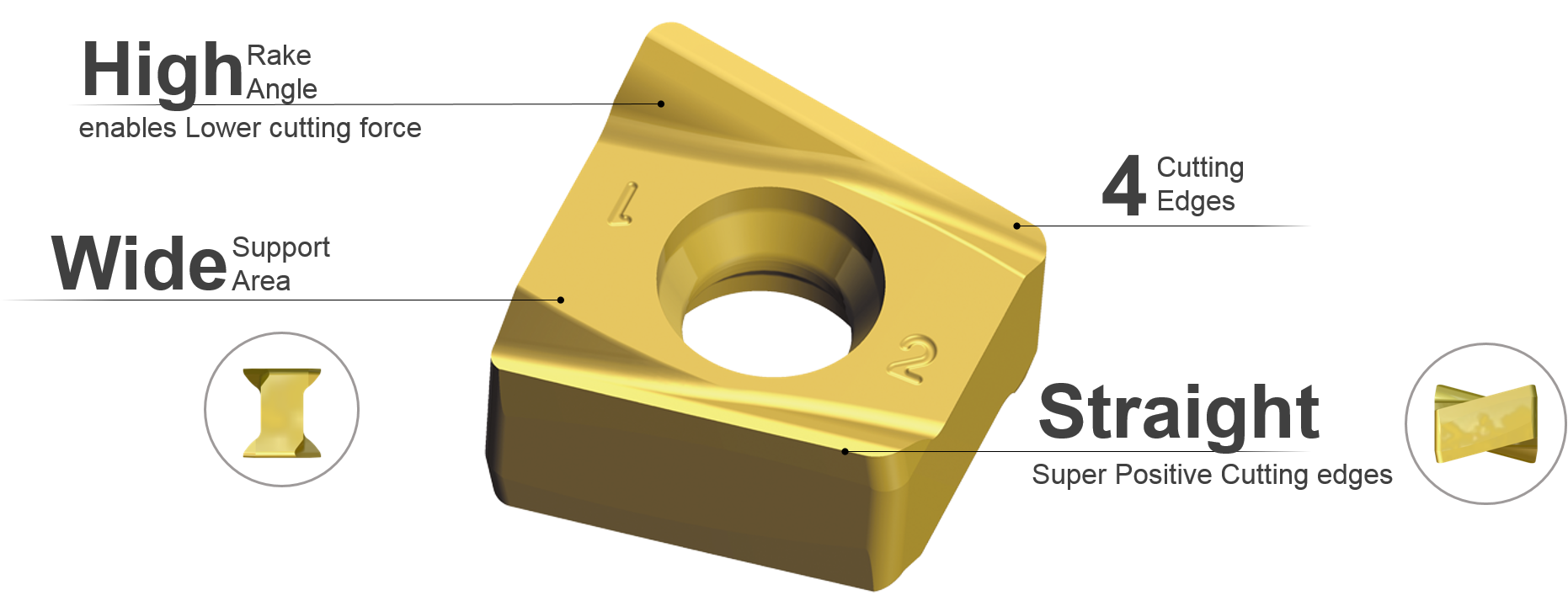

» 4コーナー使い、ハイポジチップ
» セットアップタイム削減
» 鋼・鋳鉄・アルミ加工用

Non-Adjusting Screw Type Insert, Cutter Line for Super Finishing

The SFEED-TEC CHASE-4-FINISH line's direct screw mounting system eliminates the required run-out adjustment of cutters while performing finishing operations, therefore eliminating the need for extra set-up time. The arrangement of the cutter's unique cutting edges and design optimizes surface roughness while machining depths of cut of under 0.5 mm and reduces set-up time. The double-sided 4 corner 4WHU insert’s long wipers enable excellent surface roughness during machining and is especially suited for a variety of materials from aluminum to steels and cast iron. The CHASE-4-FINISH’s improved tool life and chip evacuation is benefited by the insert’s high axial rake angle.


* Optimal arrangement of cutting edges in Ø100 mm cutter with 8 teeth and 1 wiper pocket for ultra surface finish

Cutters by Inserts

  • 4WHU-ML 鋼・鋳鉄加工用
  • 4WHU-AL (K10) アルミ合金・非鉄金属加工用
  • 4WHU-PCD (TD810) アルミ合金・非鉄金属加工用
  • 4WHU-CBN (TB7015) 鋳鉄加工用
