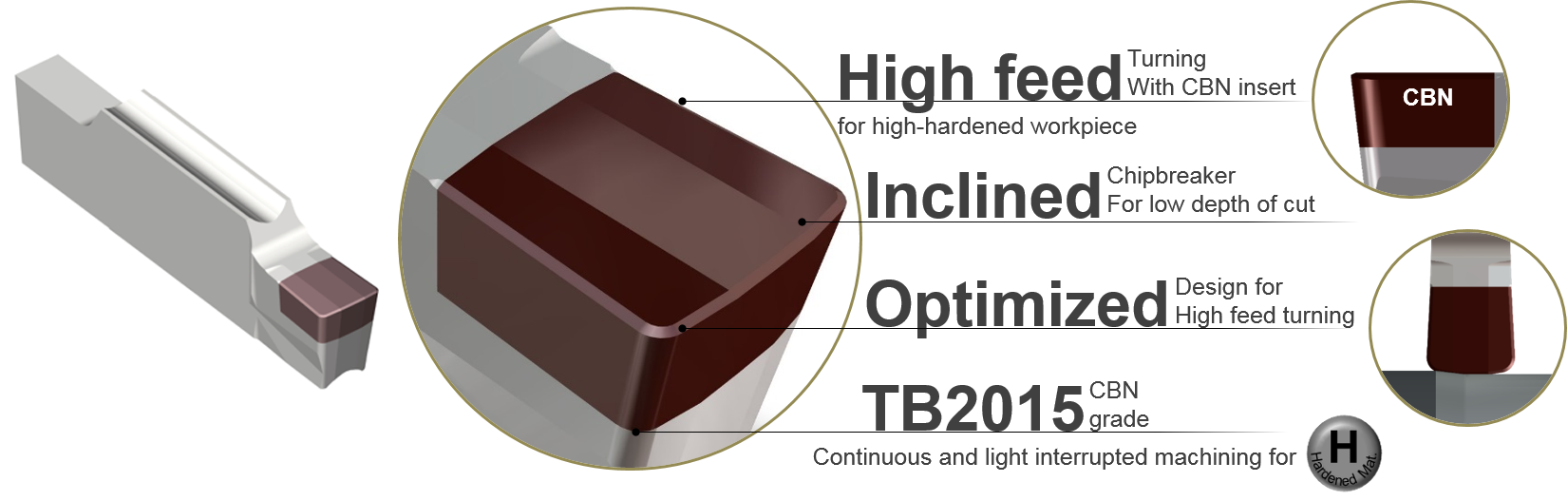

TSG-HF CBNチップ

High feed Turning CBN Insert for Hardened Steels

» High productivity with high feed rate up to 1.2 mm/rev turning machining
» Small depth of cut up to 0.12 mm machining
» Excellent surface finish
» Good chip control
» TB2015 CBN grade for continuous and light interrupted machining

High Feed CBN Insert Line for Hardened Materials

TaeguTec’s T-Clamp CBN insert is designed to enable bi-directional high feed turning and obtain superior surface finish due to the natural bending of the T-Clamp holder during machining as well as excellent chip control. With a maximum feed rate of 1.2 mm/rev and a small depth of cut up to 0.12 mm machining, this high feed CBN line greatly contributes to the productivity improvement of high-hardened automotive parts such as shafts, gears and transmissions. Furthermore, it enables at least more than twice of the high feed machining performance when compared to conventional turning CBN wiper inserts. The line’s CBN grade maximizes productivity of continuous and light interrupted machining.
