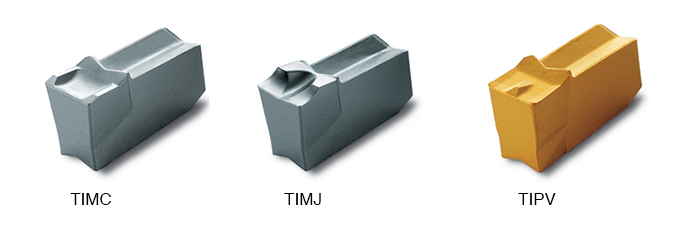

スロッター TIMC/MJ/PV

スロッター

» Narrow width applications to 1.6mm
» Simple easy-to-mount inserts
» Efficient chip evacuation

Features / Benefits of slotting cutters

  • Narrow width applications to 1.6mm
  • Simple easy-to-mount inserts
  • Secure insert retention self-positioning insert stopper for repeatability
  • Drive flange mounting for extra stability
  • Minimal radial runout
  • Efficient chip evacuation
  • Reduced cutting forces
  • Improved tool life
  • Economical
  • Metric cutting diameters: 75mm, 100mm, 125mm, 160mm, 250mm
  • Cutting width ranges: 1.6mm - 6.35mm
  • Geometry: Positive Rake
  • Applications: Slotting and sawing
  • Materials: Carbon steels, alloy steels, stainless steels, cast iron, aluminum and exotics
