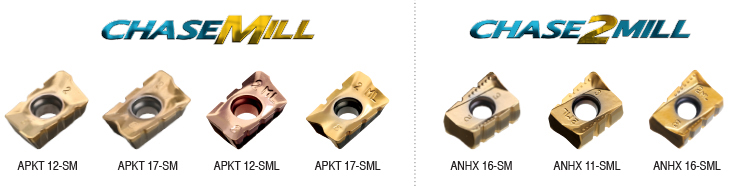

• Chip splitter type inserts reduce cutting force during heavy milling
  • Reduces cutting load - high table feed can be achieved
  • Reduces vibration and noise
• Insert’s helical cutting edge geometry enables double feed rates
• Improves chip evacuation(chip split into small pieces) and reduces heat generation
• Splitter inserts mount on standard cutters without modifications
• Enables high feed rate at deeper depth of cut in general 90˚milling

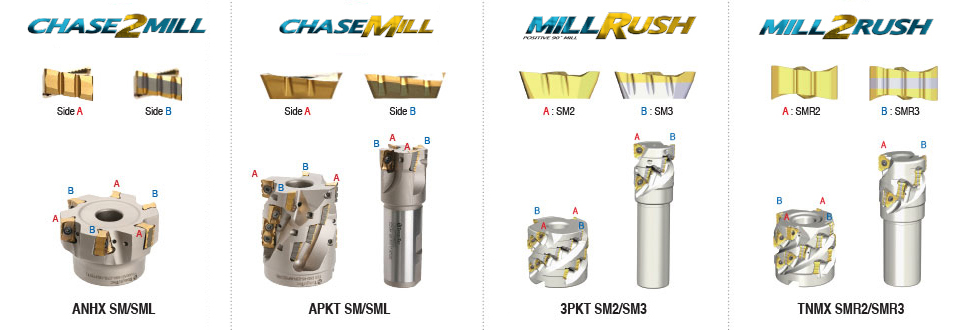

Assembly

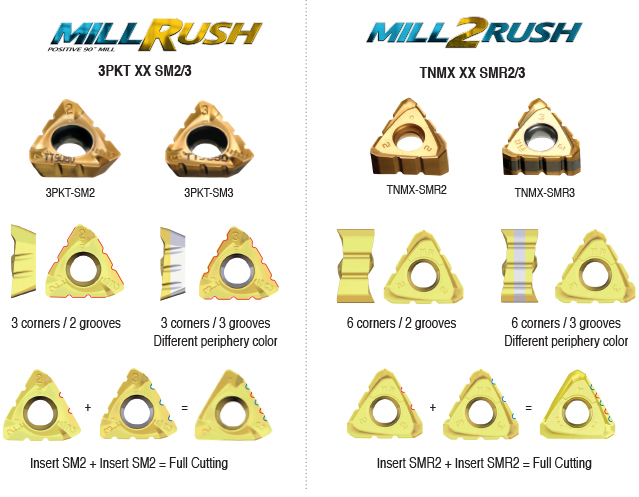

• Chip splitter cutting edge generates smaller chips with low cutting force and create complete cutting edges when combined
• For optimum machining efficiency, use even numbered flute cutters
