製品情報

ミリング > 高送り加工

CHASE-2-FEED (BLMP 13)

Versatile High Feed Mill with Strong 6 Cutting Edge Insert

» Double-sided 6 corner insert
» Optimized insert design for high feed machining
» Low cutting forces and excellent rigidity
» Excellent chip evacuation
» First choice for high productivity in max 2mm high depth of cut

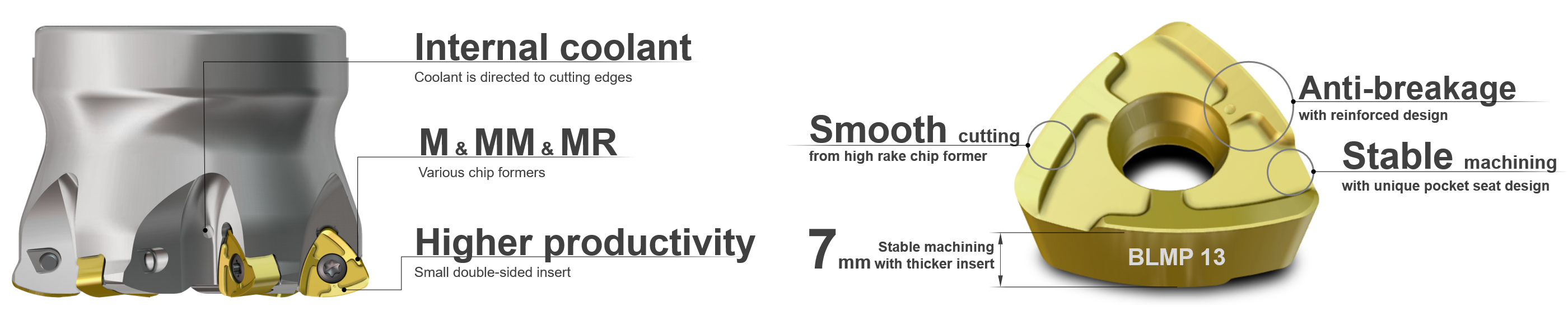

BLMP 13 Packed with Many Features to Reduce Machining Cost

The double-sided, six cutting edge BLMP 13 insert series is specifically designed for up to 2 mm depth, high feed milling applications in heavy, die and mold, power generation and general industries. Its reinforced unique design offers better anti-breakage capability and its high rake angle reduces cutting loads as well as providing excellent chip evacuation. Its 7 mm thickness and unique pocket seat enables stable machining in high feed conditions.

チップ・カッター

  • BLMP 13-M: 汎用
  • BLMP 13-MM: ステンレス鋼用
  • BLMP 13-MR: 重切削、粗加工用
