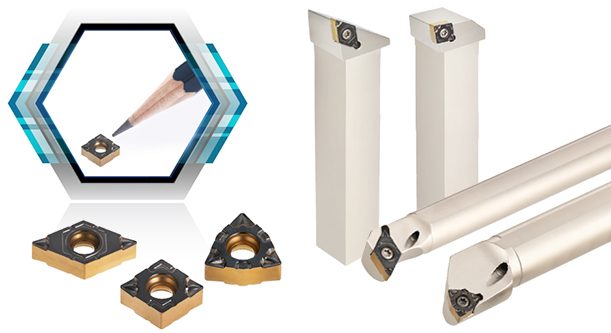

TaeguTec has launched a new double-sided mini size insert and holder line, the RHINO-M-TURN, replacing standard positive small inserts.
RHINO-M-TURN is a compact, double-sided mini size insert that is suitable for the internal and external turning of small parts and can replace standard positive small inserts like CCMT 06 and DCMT 07.
Although the insert is a double-sided type, it has the same edge angle as the conventional positive insert type when mounted to the holder. This results in minimal vibration due to the low cutting force, as well as good workpiece surface finish and machining accuracy; particularly at low depths of cut. In addition, the strong screw clamping design exerts stable machining during operations.
The inserts are available as CNMX, DNMX, WNMX type for finishing, and a precise DNGX type suitable for Swiss type automatic lathes. The square holders are available in shank sizes 1212, 1616 for Swiss type automatic lathes, and 1616, 2020 for general machining while the boring bars are available in Ø12 mm and Ø16 mm.
