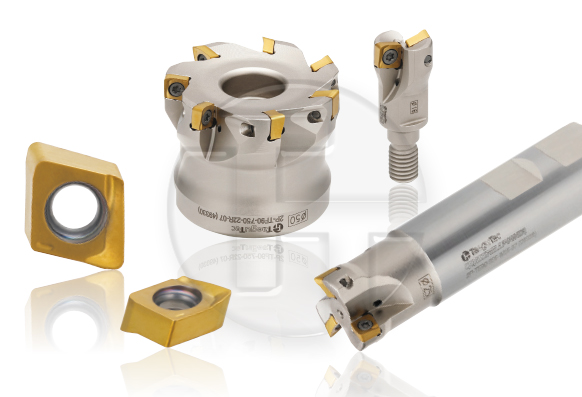

TaeguTec has expanded the CHASEMILL POWER family of products with new inserts 2PKT 07 and related cutters.
With the popularity of the 2PKT 05 insert line, TaeguTec has expanded the CHASEMILL POWER family of products with the introduction of the 2PKT 07 insert and related cutters.
The 2PKT 07 insert is a true 90 degree milling line with 2 cutting edges. Designed with a positive high rake angle, the insert is characterized by a low cutting force during operation. It also has the CHASEMILL POWER’s unique double dovetail shape insert pocket that relieves the insert screw from the cutting load, thus providing powerful and secure insert clamping. As such, it allows end-users to clamp the 2PKT 07 insert with a bigger size screw relative to similar size conventionally designed inserts which protects against unexpected screw or insert failure during operations. Also, the insert’s inclusion of a wide wiper enables excellent surface roughness during machining.
The expansion comes in all cutter types (end mill, modular and face mill); end mills and modular types are available in 16-40 mm diameters while the face mills are available in the 40-80 mm diameter range. All 2PKT 07 cutters include internal coolant channels and are capable of slotting, shouldering, step down, straight ramping and helical ramping.
CHASEMILL POWER Features
» 2 cutting edges and 90° milling
» Positive high rake angle for low cutting resistance machining
» Double dovetail geometries for strong clamping force
» Bigger clamping screw than the competition
» Protects against unexpected screw or insert failure
